Double Glass Solar Modules 55-Layout 210mm Half-Cut

1/1

inquiry

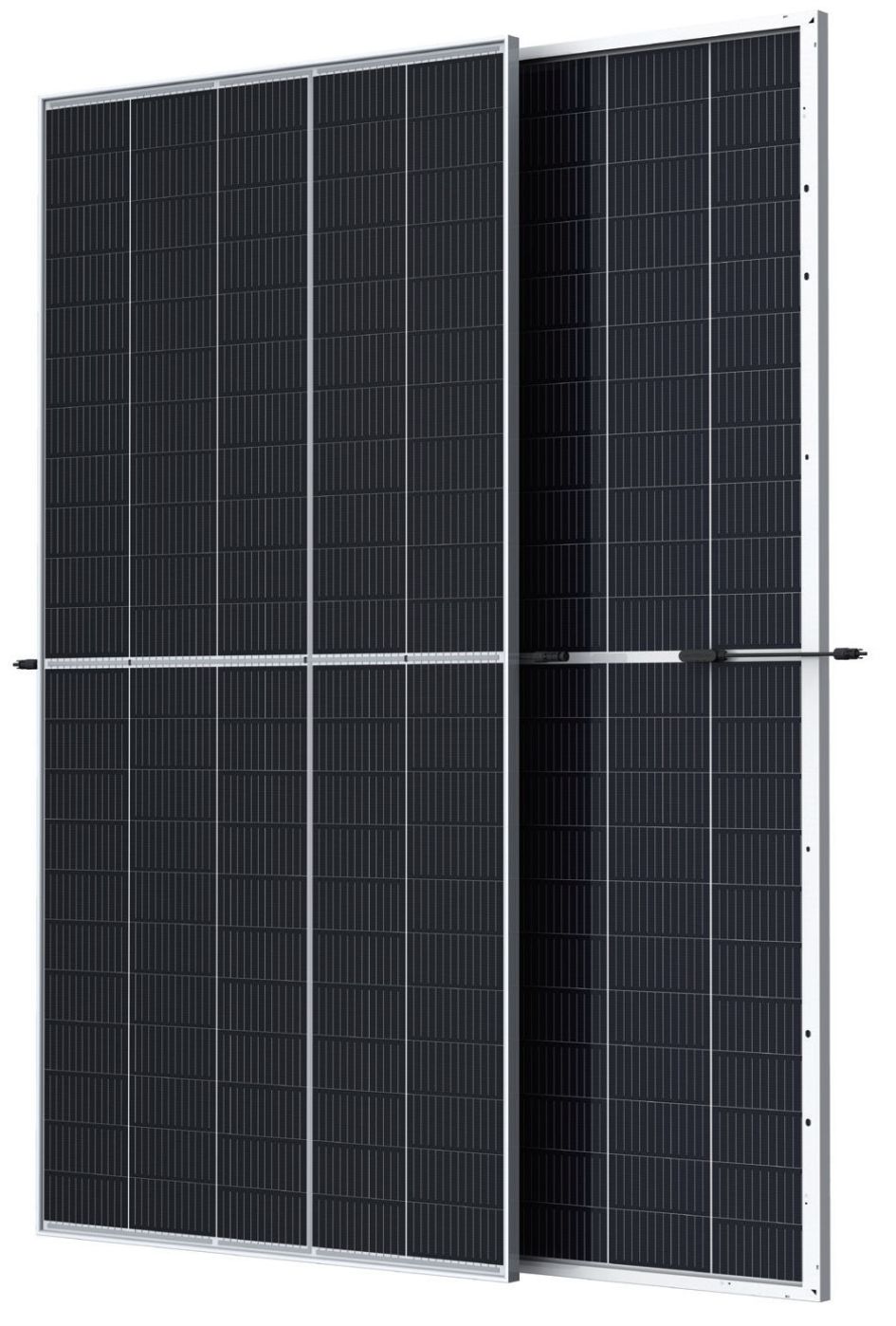

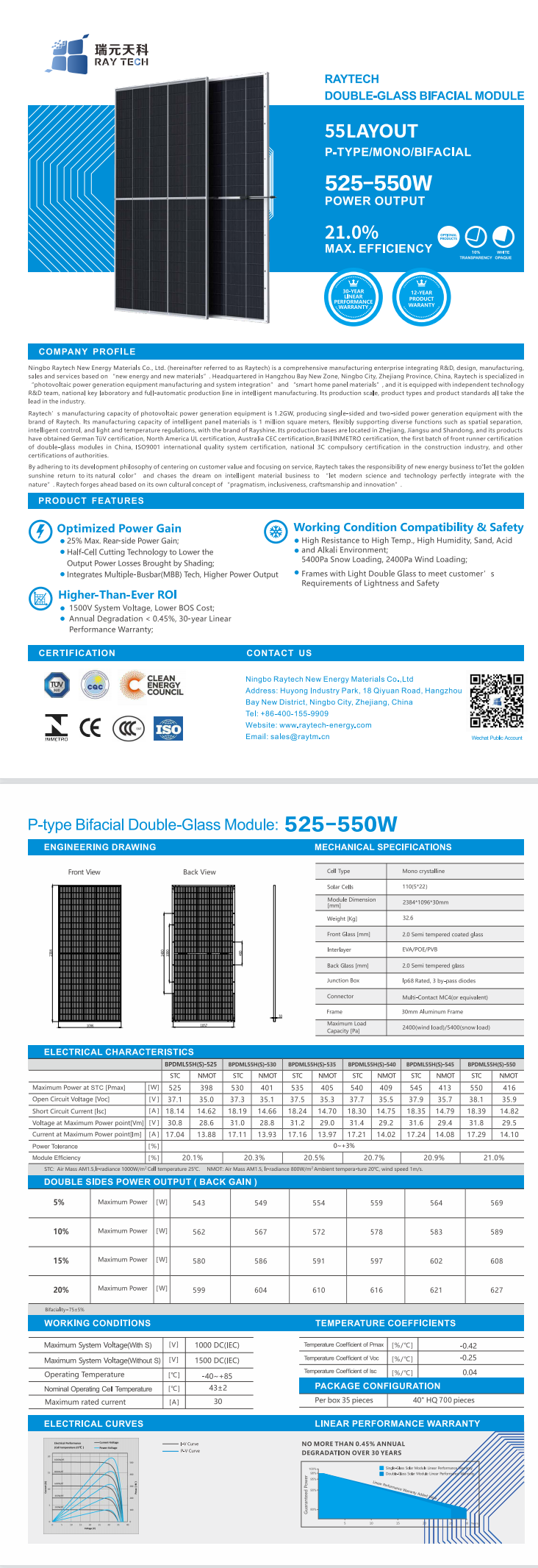

Double Glass Solar Module 55-Layout

PRODUCT DESCRIPTION

● Raytech Double Glass Solar Module
● 525-550W
● 21% Max Efficiency
● Transparency Option: Opaque/10% transparency
● 30-Year Linear Performance Warranty
● 12-Year Product Warranty

PRODUCT FEATURES

Optimized Power Gain
●25% Max. Rear-side Power Gain; Half-cell cutting technology to lower output power loss from shading;● Unique product design to realize cooler working temperature and smaller probability of hotspot;● Integrates Multi-Busbar(MBB) tech, giving higher power output.
Higher Return on Investment
● 1500V system voltage design can effectively lower BOS cost;● Raytech offers 30-year linear performance warranty with annual degradation less than 0.45% starting from second year; ● Frames with Light Double Glass to meet customer's Requirements of Lightness and Safety
Safety and Working Condition Capability
● High Resistance to high temperature, high humidity, sand, acid and alkali environment;● 5400Pa Snow Loading, 2400Pa Wind Loading;
